Un addin OpenOffice.org/LibreOffice RCalc permet d'utiliser dans le tableur OpenOffice.org/LibreOffice Calc les fonctions et les graphiques de du langage statistique R. Il s'agit d'un addin qui n'est pas encore stable dans sa version courante (0.1.12) de février 2008 mais très intéressant. Ainsi, après avoir étudier RExcel et son compère ROOo dans un billet précédent, il est temps de découvrir RCalc !
Préparation de la distribution de R
Pour déployer les prérequis de R, il faut ouvrir la console de R et taper les commandes suivantes :
> install.packages("Rserve")
... Après avoir choisi le bon site miroir CRAN de http://cran.rproject.org/
package 'Rserve' successfully unpacked and MD5 sums checked
> install.packages("odesolve")
...
package 'odesolve' successfully unpacked and MD5 sums checked
> install.packages("scatterplot3d")
...
package 'scatterplot3d' successfully unpacked and MD5 sums checked
> install.packages("sna")
...
package 'sna' successfully unpacked and MD5 sums checked
> install.packages("survival")
...
package 'survival' successfully unpacked and MD5 sums checked
Enregistrement manuel de l'addin R4Calc par OpenOffice/LibreOffice Calc
Après avoir téléchargé le fichier dans le répertoire PortableOpenOffice\App\openoffice\share\uno_packages pour ou dans le répertoire "C:\Program Files\OpenOffice.org 3\share\uno_packages" pour la distribution windows standard. L'utilitaire "OpenOffice.org 3\program\unopkg.exe" s'occupe de l'enregistrement manuel des extensions openoffice. Pour enregistrer l'addin, il faut ouvrir une fenêtre Invite de commandes Windows et taper les commandes suivantes si vous avez PortableOpenOffice :
Microsoft Windows XP [version 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. cd J:\UBS\clients\Bureautique\PortableOpenOffice\App\openoffice openoffice>
ou si vous avez la distribution standard :
Microsoft Windows XP [version 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. cd "C:\Program Files\OpenOffice.org 3" C:\Program Files\OpenOffice.org 3>
puis placez vous dans le sous-répertoire program pour utiliser unopkg :
openoffice>cd program
program>unopkg list
all deployed user packages:
<none>
program>unopkg add ..\share\uno_packages\RAddon.uno.pkg
program>unopkg list
all deployed user packages:
Identifier: org.openoffice.legacy.RAddon.uno.pkg
URL: vnd.sun.star.expand:$UNO_USER_PACKAGES_CACHE/uno_packages/7C.tmp_/RAddon.
uno.pkg
is registered: yes
Media-Type: application/vnd.sun.star.package-bundle
Description:
bundled Packages: {
URL: vnd.sun.star.expand:$UNO_USER_PACKAGES_CACHE/uno_packages/7C.tmp_/RAd
don.uno.pkg/RFuncs.uno.rdb
is registered: yes
Media-Type: application/vnd.sun.star.uno-typelibrary;type=RDB
Description:
URL: vnd.sun.star.expand:$UNO_USER_PACKAGES_CACHE/uno_packages/7C.tmp_/RAd
don.uno.pkg/Addons.xcu
is registered: yes
Media-Type: application/vnd.sun.star.configuration-data
Description:
URL: vnd.sun.star.expand:$UNO_USER_PACKAGES_CACHE/uno_packages/7C.tmp_/RAd
don.uno.pkg/RAddon.xcu
is registered: yes
Media-Type: application/vnd.sun.star.configuration-data
Description:
URL: vnd.sun.star.expand:$UNO_USER_PACKAGES_CACHE/uno_packages/7C.tmp_/RAd
don.uno.pkg/RAddon.uno.jar
is registered: yes
Media-Type: application/vnd.sun.star.uno-component;type=Java
Description:
URL: vnd.sun.star.expand:$UNO_USER_PACKAGES_CACHE/uno_packages/7C.tmp_/RAd
don.uno.pkg/RFuncs.uno.jar
is registered: yes
Media-Type: application/vnd.sun.star.uno-component;type=Java
Description:
}
program>
L'enregistrement manuel s'est bien passé. Ce wiki peut vous donner des précisions supplémentaires.
Enregistrement de l'addin R4Calc par le gestionnaire des extensions OpenOffice/LibreOffice Calc

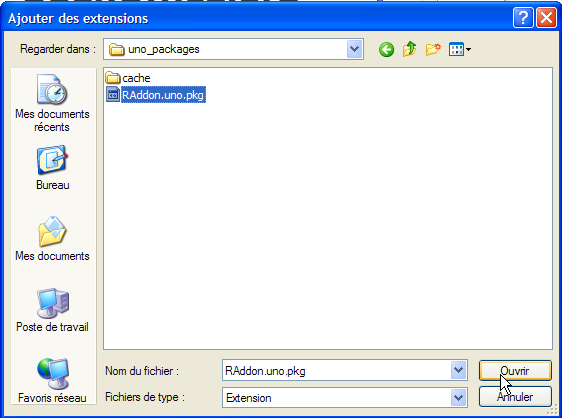

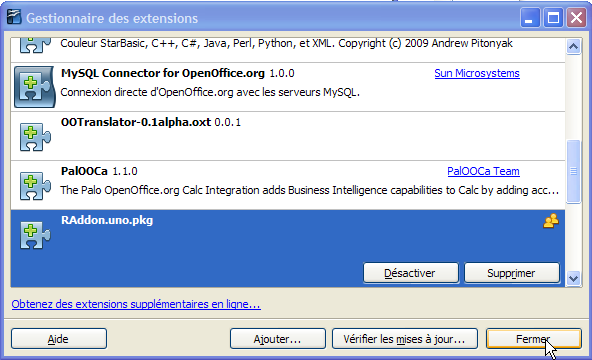

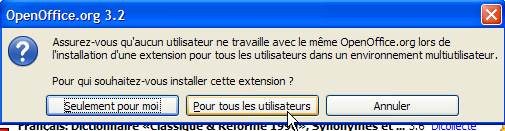

Après avoir téléchargé le fichier dans un répertoire, il faut ouvrir Openoffice ou Calc et procéder à partir du menu Outils.

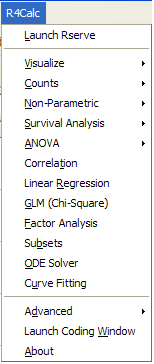

Si vous ouvrez maintenant Calc, vous pouvez constater l'apparition d'une nouvelle entrée dans le menu nommée R4Calc.
Démarrage du serveur Rserv

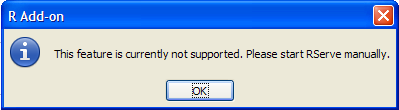

La commande de lancement du serveur n'est pas encore fonctionnelle dans l'addin RCalc.
Il faut donc procéder manuellement dans la console de R avant de commencer à utiliser l'addin RCalc avec les commandes library(Rserve) et Rserve() :
R version 2.11.0 (2010-04-22) Copyright (C) 2010 The R Foundation for Statistical Computing ISBN 3-900051-07-0 R is free software and comes with ABSOLUTELY NO WARRANTY. You are welcome to redistribute it under certain conditions. Type 'license()' or 'licence()' for distribution details. R is a collaborative project with many contributors. Type 'contributors()' for more information and 'citation()' on how to cite R or R packages in publications. Type 'demo()' for some demos, 'help()' for on-line help, or 'help.start()' for an HTML browser interface to help. Type 'q()' to quit R. > library(Rserve) Warning message: package 'Rserve' was built under R version 2.11.1 > Rserve() Starting Rserve... J:/UBS/outils/R-Portable/App/R-2.11.0/../../Data/library/Rserve/Rserve.exe >
